ọja Apejuwe

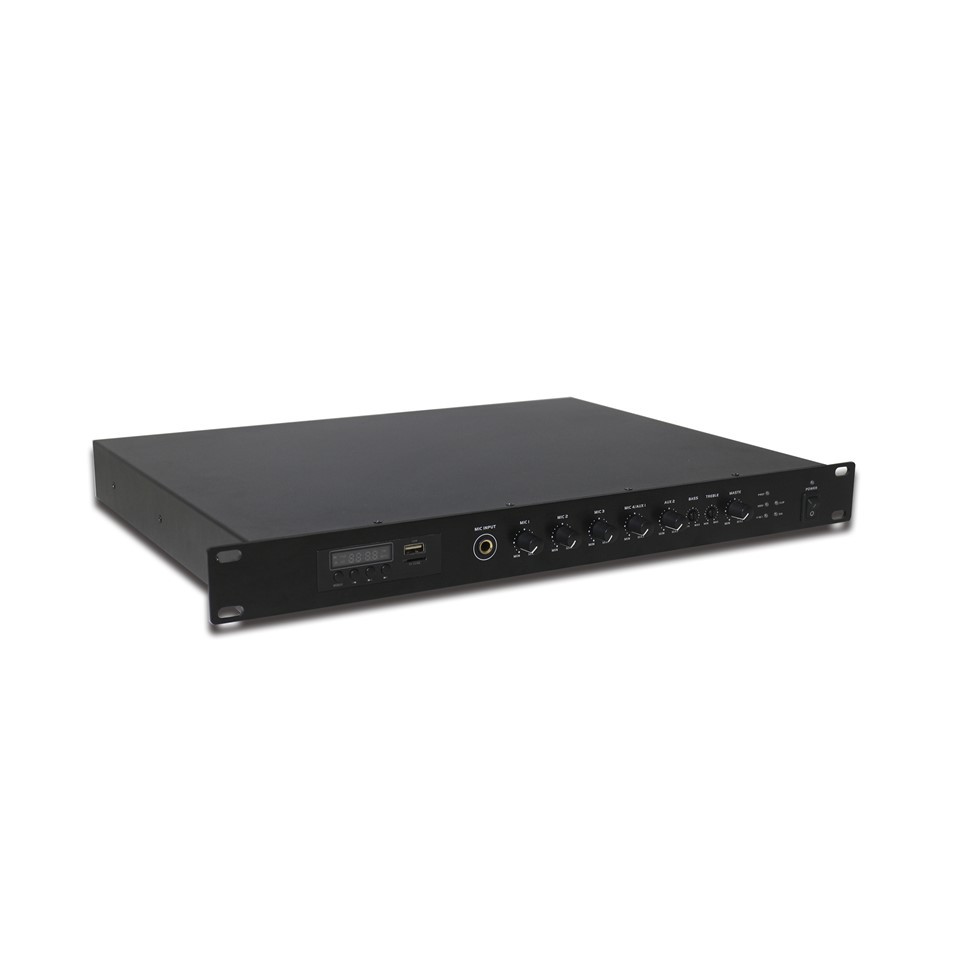

Ti a ṣe ẹrọ fun awọn iwulo ohun afetigbọ ti iṣowo, NS -P024 jẹ giga -iṣẹ IP Paging Amplifier ti o ṣajọpọ ampilifaya 240 watt pẹlu awọn agbara ohun afetigbọ nẹtiwọki ti ilọsiwaju. Ampilifaya netiwọki yii nmu awọn amayederun IP ṣiṣẹpọ lati fi iṣiṣẹpọ, agbegbe{5}}paging iṣakoso kọja awọn ile ounjẹ, awọn ile itaja, ati ọpọlọpọ{6}}awọn ohun elo yara{7} gbogbo lakoko ti o n ṣe atilẹyin orin abẹlẹ nipasẹ ẹrọ orin media inu.
Gẹgẹbi Amplifier IP Paging otitọ, NS -P024 n ṣiṣẹ laarin awọn agbegbe Ethernet boṣewa ati pe o faramọ awọn iṣedede SIP fun isọpọ ailopin pẹlu awọn eto foonu VoIP ati awọn iru ẹrọ intercom. Pẹlu awọn iṣakoso ere kọọkan, pataki - dakẹ ti o da, ati kukuru - awọn abajade idabobo ayika, o ṣiṣẹ kii ṣe bi ampilifaya 240 watt nikan ṣugbọn bakanna bi ampilifaya ohun afetigbọ ti o gbẹkẹle fun iṣẹ apinfunni-awọn ibaraẹnisọrọ to ṣe pataki.
Key Awọn ẹya ara ẹrọ
- Kikun -afihan IP Paging Amplifier ni ibamu pẹlu ilana SIP fun ohun gidi{1}}ohun akoko lori IP
- Pese agbara ampilifaya 240 watt pẹlu 100V tabi awọn abajade agbọrọsọ 4–16Ω yipada
- Ṣe atilẹyin fun awọn gbohungbohun 4 (pẹlu Phantom{1}}MIC4 ti o ni agbara) ati awọn orisun iranlọwọ 2
- Ti a ṣe{0} ni Bluetooth, USB, SD, ati tuner FM fun ohun afetigbọ agbegbe rọ{1} o dara fun iṣeto ampilifaya alapọpọ PA
- Idaduro ayo aifọwọyi ṣe idaniloju pajawiri ti o han gbangba tabi ifasilẹ ikede
- Lightweight 1U chassis jẹ ki ampilifaya nẹtiwọọki yii rọrun lati fi sori ẹrọ ni awọn agbeko boṣewa
Awọn pato
|
Nọmba awoṣe |
NS {{0}P024 |
|
Ti won won Power wu |
240W |
|
Abajade |
100V tabi 4-16 ohm yipada |
|
Idahun Igbohunsafẹfẹ |
80-16000Hz, +/- 3dB |
|
THD |
Kere ju 0.5% ni 1kHz (Agbara Ti won won 1/3) |
|
Ipin S/N |
Dara ju 80dB |
|
Awọn iṣakoso ohun orin |
BASS:100 Hz (+/- 10dB), TREBLE:10k Hz (+/- 10dB) |
|
Awọn iṣakoso |
Gbogbo ere titẹ sii, 1 tirẹbu, baasi 1, odi 1, ati yipada agbara |
|
Itutu agbaiye |
Internal24VDC àìpẹ, igbona gbigbo lọpọlọpọ |
|
Awọn itọkasi |
Atọka agbara LED, PROT, 100V, 4-16 OHM, CLIP, SIG |
|
Idaabobo |
Adapin lọwọlọwọ, Circuit kukuru ati awọn iyika aabo gbona |
|
Agbara agbara |
330W |
|
Awọn ibeere agbara |
220-240V AC,50/60 Hz;24VDC fun TD version |
|
Awọn iwọn |
44,5 (H)× 483 (W)× 330 (D) mm |
|
Ti a ṣe{0} ni Awọn iwọn |
1U agbeko 19 inch |
|
Apapọ iwuwo |
5.6kg |
|
Pari |
Panel: Aluminiomu awo, dudu Ọran: irin awo, dudu |
